Rain Water Square Steel Downpipe Roll Forming Machine
|Payment Type:||L/C,T/T,D/P,Paypal,Money Gram,Western Union|
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Packaging:||Standard Package or According To Customer's Requirement|
|Productivity:||30 Sets Per Month|
|Place of Origin:||Hebei Province, China|
|Supply Ability:||30 Sets Per Month|
|Certificate:||CE, ISO, SGS|
Model No.: TG-0113

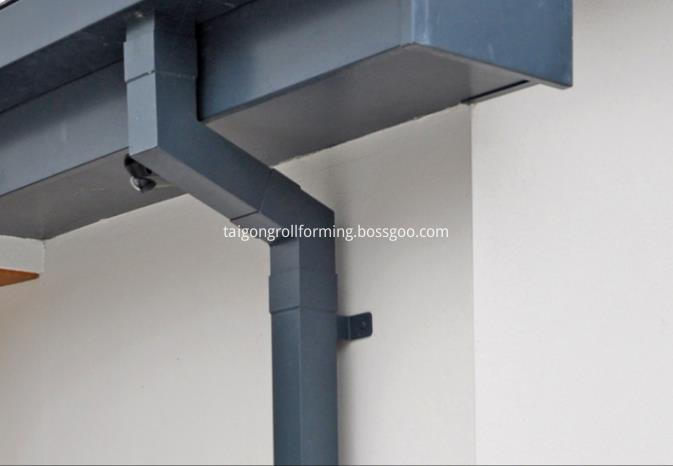

The downpipe is used to collect roof rainwater and lead it into the rainwater pipe laid under the ground. Gutter Downpipe Square Tube Making Machine for automatic computer control, automatic processing and production, with raw materials uncoiler, raw materials will be placed in the machine inlet, machine-driven plate automatic rolling, after multi-roller processing, automatic computer control cut-off, accurate measurement size; flying saw cut-off, simple and easy to maintain. The Downpipe Roll Forming Machine can roll the forming water pipe into a joint bend pipe, so that the water pipe and its bend are connected together. The Steel Downpipe Cold Roll Forming Machine consists of several parts, such as discharging machine, uncoiling device, feeding guide device, forming main machine, forming cutting device, hydraulic system, control system and product bracket.
1. Profile Drawing and Products
2. The Chart of Process flow
Feeding --- Servo motor feeding ---- Roll Forming Machine------ Computer Control Cabinet--- Automatic cutting Mechanism --- Run-out Tables
3. The equipment including
Roll forming machine
Electrical control system
Normal run out table
1 PC 1m*1m
1 set Max. loading 5 T
4. Technical specification and details
(1) Hydraulic Ue-coiler
Un-power: manual de-coiler; Max. Capacity: 7T
Suit for coil inner diameter: 508mm, suitable coil Max. out diameter: 1000mm
Manual power expands the coil inner surface.
(2) Downpipe Machine
Downpipe Roll Forming Machine
About 7 T
350H section steel
Middle plate thickness
45# quenched and tempered material
45# Forging Hard Chrome Plating
1 inch sprocket, chain
About 18 stations
Main Engine Power
7.5KW with cycloidal reducer
Wuxi "rip" or "Xin Ya"
" CHINT "or" delixi"
(3) Hydraulic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12 with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by hydraulic station.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.
(4) Hydraulic station
1) It supplies the power for the hydraulic cutter.
2) All hydraulic accessories are all use Chinese famous brand products.
3) Hydraulic motor power: 3KW
(5) PLC Control System
1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the Steel Tube Downpipe Forming Machine
2) Delta converter adjusts speed technology, realize the automatic production.
3) Text screen is input and cancelled the working data.
4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer`s requirement)
(6) Product Rack ( un-powered)
1) They are used to put the final product when product coming out from cutting device.
2) Two pieces, each piece length is 1m, total length is 3 meters.
3) Collect the final product and final products are convenient to be stacked by workers.
5. Equipment for Reference
6. Scene application
9. Payment terms and after-sale service
1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 45-50 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training
1. If buyers visit our factory and check the Steel Tube Roll Forming Machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual or video to teach you to install and operate Drainage System Roll Forming Machine.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 100 one man one day). To the seller`s appointed account by T/T before the seller`s technicians go to the buyer`s factory. The buyer pays the seller`s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
Our main products include Stud Track Roll Forming Machines, Steel Frame Forming Machines, Purlin Roll Forming Machines, Welded Pipe Making Machines, Highway Guardrail Roll Forming Machines, Metal Expanded Mesh Production Lines and so on. If you have any further question of our Cold Roll Forming Machine, please feel free to contact me.
